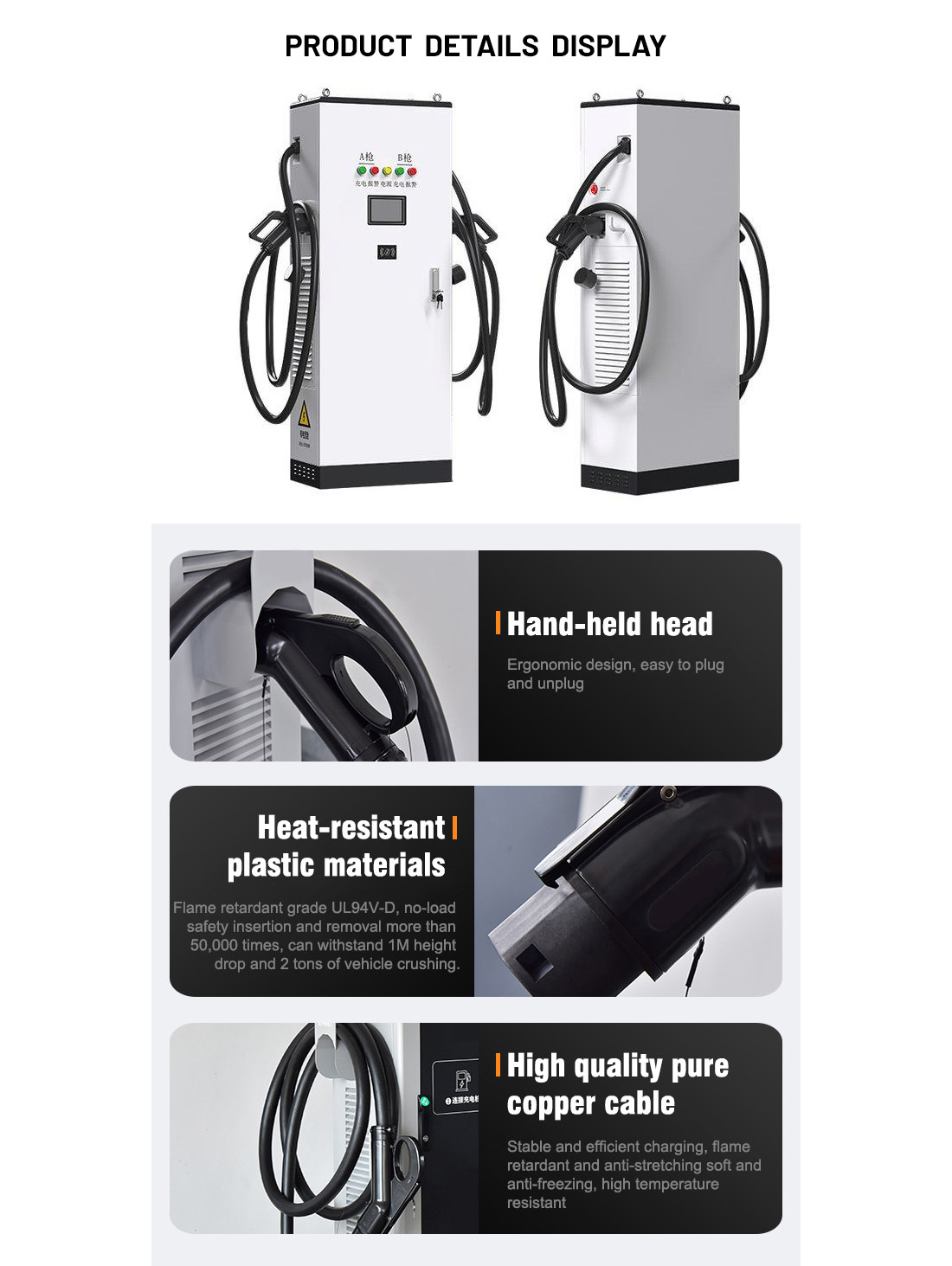

Product Description 60-240KW integrated dual-gun DC charger is mainly used for rapid charging of electric buses and cars, the gun line is 7 meters standard, the dual guns can be used at the same time and can be automatically switched to improve the utilization rate of the power module. The product is waterproof, dustproof design, suitable for outdoor. The product adopts modularized design, integrating charger, charging interface, human-machine interactive interface, communication, billing and other parts into one, featuring easy installation and commissioning, simple operation and maintenance, etc. It is an ideal choice for outdoor DC fast charging of electric vehicles.

Product Specification

Product name		120KW-Body DC Charger
Equipment type		HDRCDJ-120KW-2
Technical Parameter
AC input	AC Input Voltage Range (v)	380±15%
	Frequency range (Hz)	45~66
	Input Power Factor Electricity	≥0.99
	Turbulent Noise Diffusion (THDI)	≤5%
DC Output	efficiencies	≥96%
	Output Voltage Range (V)	200~750
	Output power(KW)	120
	Maximum output current (A)	240
	charging port	2
	Charging gun length (m)	5m
Additional information on equipment	Voice (dB)	<65
	Stabilization accuracy	<±1%
	Voltage stabilization accuracy	≤±0.5%
	Output current error	≤±1%
	Output Voltage Error	≤±0.5%
	equalization unbalance	≤±5%
	human-machine display	7-inch color touch screen
	Charging operation	Swipe or Scan
	Metering and billing	DC Energy Meter
	Operating instructions	Power, Charging, Fault
	Communication	Standard Communication Protocol
	Heat dissipation control	air cooling
	Protection class	IP54
	BMS auxiliary power	12V/24V
	Charge Power Control	Intelligent Distribution
	Reliability(MTBF)	50000
	Dimension(W*D*H)mm	700*565*1630
	Installation	Integral floor standing
	Alignment	undercurrent
working environment	Altitude(m)	≤2000
	Operating Temperature(°C)	-20~50
	Storage Temperature(°C)	-20~70
	Average Relative Humidity	5%-95%
Options	4G wireless communication	charging gun8m/10m
