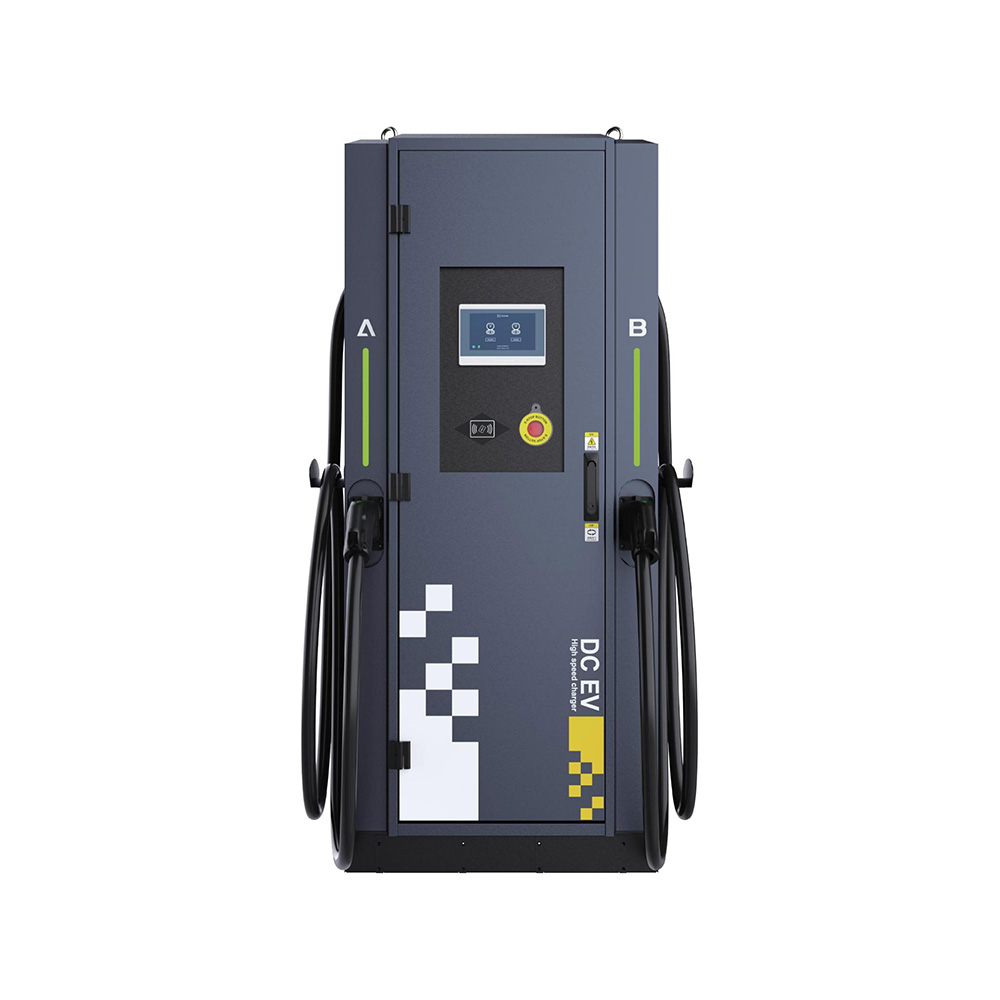

40-240kW Series DC EV Charger
| Category | specifications | Data parameters |
| Appearance structure | Dimensions (L x D x H) | 745mm x 630mm x 1750mm |
| Weight | 300kg | |
| Length of charging cable | 5m | |
| Connectors | CCS1 || CCS2 || CHAdeMO || GBT || NACS | |
| Electrical indicators | Input Voltage | 400VAC / 480VAC (3P+N+PE) |
| Input frequency | 50/60Hz | |
| Output Voltage | 200 - 1000VDC（The constant power : 300 - 1000VDC） | |
| Output current (Air Cooled) | CCS1– 200A || CCS2 – 200A || CHAdeMO – 150A || GBT- 250A|| NACS – 200A | |
| Output current (liquid cooled) | CCS2 – 500A || GBT- 800A || GBT- 600A || GBT- 400A | |
| rated power | 40-240kW | |
| Efficiency | ≥94% at nominal output power | |
| Power factor | 0.98 | |
| Communication protocol | OCPP 1.6J | |
| Functional design | Display | 7’’ LCD with touch screen |
| RFID system | ISO/IEC 14443A/B | |
| Access Control | RFID: ISO/IEC 14443A/B || Credit Card Reader (Optional) | |
| Communication | Ethernet – Standard || 3G/4G || Wifi | |
| Power Electronics Cooling | Air Cooled || liquid cooled | |
| Work environment | Operating temperature | -30 °C to 55°C |
| Working || Storage Humidity | ≤ 95% RH || ≤ 99% RH (Non-condensing) | |
| Altitude | < 2000m | |
| Ingress Protection | IP54 || IK10 | |
| Safety design | Safety standard | GB/T,CCS2,CCS1,CHAdeMo,NACS |
| Safety protection | Overvoltage protection, lightning protection, overcurrent protection, leakage protection, waterproof protection, etc | |
| Emergency Stop | Emergency Stop Button Disables Output Power |
