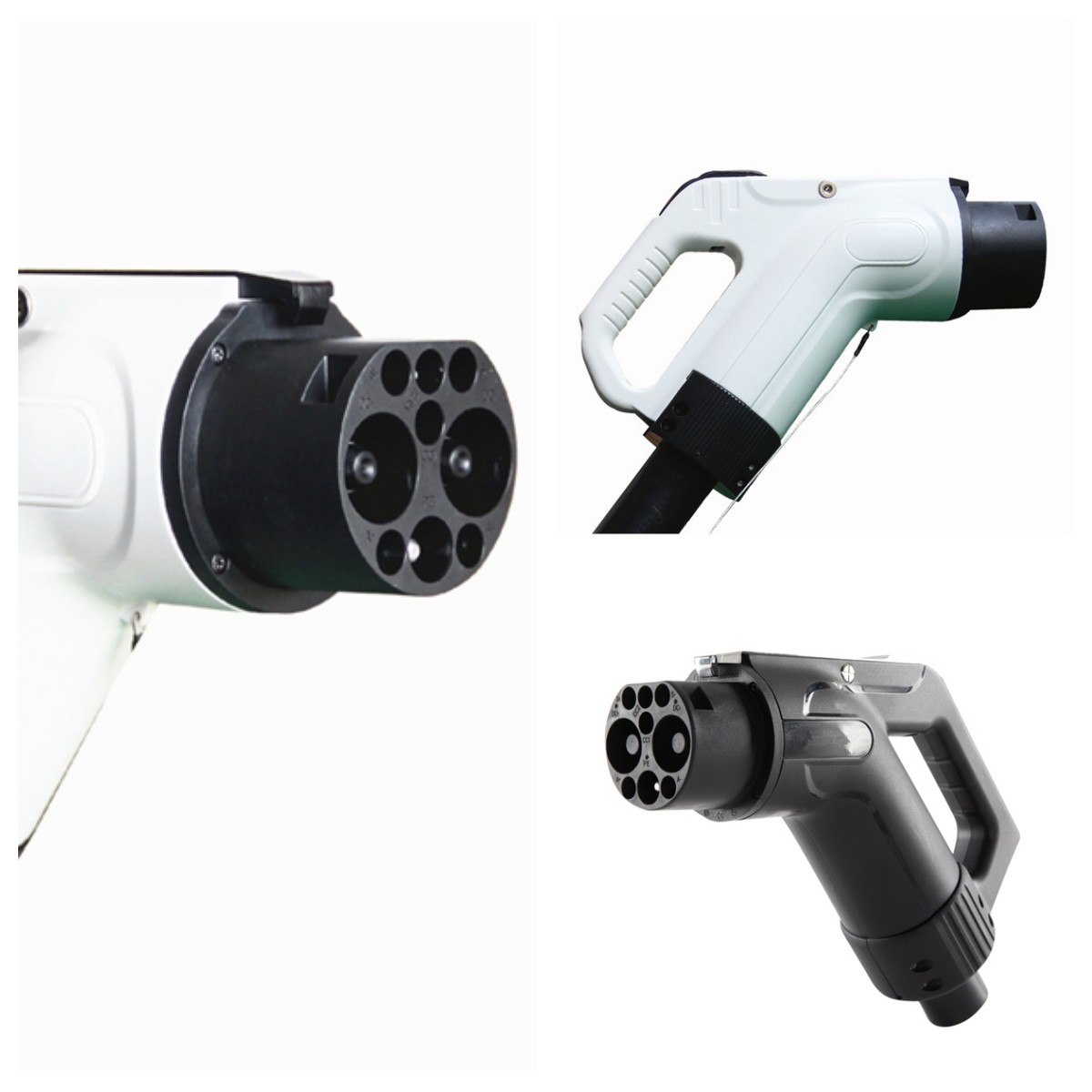

The china EV charging standard GB/T EV charging gun 250a DC fast charging connector is a cutting-edge solution for electric vehicle (EV) charging stations, designed to meet the increasing demands of the EV market with efficiency, safety, and reliability. EV Charging Connectors Detailed:

Features	Meet GB/T 20234.2-2015 regulations and requirements
	Nice appearance，hand-held ergonomic design，easy plug
	Safety pins insulated head design to prevent accidental diirecrt contact with staff
	Excellent protection performance,protection grade IP55(working condition)
Mechanical properties	Mechanical life : no-load plug in/pull out＞10000 times
	Impat of external force:  can afford 1m drop and 2t vehicle run over pressure
Applied Materials	Case Material: Thermoplastic,flame retardant grade UL94 V-0
	Pin：Copper alloy,silver + thermoplastic on the top
Environmental performance	Operating temperature：-30℃～+50℃

 EV Charging Connectors Model selection and the standard wiring

Model	Rated current	Cable specification
BH-GBT-EVDC80	80A	3 X 16mm² + 2 X 4mm² + 2P(4 X 0.75mm²)+ 2P(2 X 0.75mm²)
BH-GBT-EVDC125	125A	2 X 35mm² + 1 X 16mm²  + 2 X 4mm² + 2P(4 X 0.75mm²)+ 2P(2 X 0.75mm²)
BH-GBT-EVDC200	200A	2 X 70mm² + 1 X 25mm²  + 2 X 4mm² + 2P(4 X 0.75mm²)+ 2P(2 X 0.75mm²)
BH-GBT-EVDC250	250A	2 X 80mm² + 1 X 25mm²  + 2 X 4mm² + 2P(4 X 0.75mm²)+ 2P(2 X 0.75mm²)

Applications This charging connector is ideal for various applications, including: Public Charging Stations: Enhance charging efficiency and reduce waiting times for EV drivers. Fleet Operations: Support rapid charging for commercial and government fleets. Residential and Commercial Complexes: Provide convenient and reliable charging for residents and tenants. Why Choose This Connector? Efficiency: High power and dual-gun capability boost operational performance. Reliability: Engineered for long-lasting use in demanding conditions. Versatility: Compatible with a wide array of GB/T-compliant electric vehicles.

The GB/T gual gun 250A DC fast charging connector is an advanced charging solution that combines speed, safety, and durability. Whether for large-scale charging networks or private installations, this connector is a perfect choice for meeting the demands of modern electric mobility.

Contact us today to learn more or to place an order!
