OEM China Mini personal portable 4G GPS Tracker Elderly GPS Watch magnetic charging dock station with avoid short circuit ic for in house desk charging DC01

As the core equipment in the field of electric vehicle charging, the principle of DC charging pile is to efficiently convert the AC power in the power grid into DC power through the inverter, the core component inside the DC charger, and directly supply it to the battery of the electric vehicle, so as to realise rapid charging. This technology not only simplifies the charging process and greatly improves the charging efficiency, but also avoids the loss of power conversion by the inverter on board of the electric vehicle, which is an important driving force for the popularisation of electric vehicles. The advantages of DC charging piles, in addition to its efficient charging capacity, can greatly shorten the charging time to meet the user's rapid replenishment needs, but also has a high degree of intelligence, easy to operate and monitor the user to improve the convenience and safety of charging. In addition, the wide application of DC charging piles also helps to promote the improvement of electric vehicle infrastructure and the popularity of green travelling.
send email to us

Products Details

We support our consumers with ideal high-quality goods and substantial level support. Becoming the specialist manufacturer in this sector, we now have acquired abundant practical encounter in producing and managing for OEM China Mini personal portable 4G GPS Tracker Elderly GPS Watch magnetic charging dock station with avoid short circuit ic for in house desk charging DC01, The principle of our business is to present high-quality items, expert support, and truthful communication. Welcome all close friends to place trial buy for developing a long-term business relationship. We support our consumers with ideal high-quality goods and substantial level support. Becoming the specialist manufacturer in this sector, we now have acquired abundant practical encounter in producing and managing for China dock charging station and Charging station price, Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. We can provided good quality with competitive price for you. Product Description: DC charging pile is a kind of charging equipment specially designed to provide DC power supply for electric vehicles. DC charging pile can convert AC power into DC power and directly charge the power battery of electric vehicles, which has higher charging power and larger voltage and current adjustment range, so it can realise rapid charging and provide electric vehicles with fast replenishment of electric power, and in the process of charging, the DC charging pile can more efficiently During the charging process, the DC charging pile can utilise the electric energy more efficiently and reduce the energy loss, and the DC charging pile is applicable to various models and brands of electric vehicles with wider compatibility. DC charging piles can be classified in different dimensions, such as power size, number of charging guns, structural form, and installation method. Among them, according to the structure form more mainstream classification is the DC charging pile is divided into two kinds: integrated DC charging pile and split DC charging pile; according to the number of charging gun more mainstream classification is the DC charging pile is divided into single gun and double gun, called single gun charging pile and double gun charging pile; according to the way of installation can also be divided into floor-standing type and wall-mounted type charging pile. In summary, DC charging pile plays an important role in the field of electric vehicle charging with its efficient, fast and safe charging capability. With the continuous development of electric vehicle industry and the continuous improvement of charging infrastructure, the application prospect of DC charging pile will be more broad.

advantage

Product Parameters：

 BeiHai DC charger
 Equipment Models   BHDC-120KW BHDC-160KW BHDC-180KW BHDC-240KW BHDC-320KW BHDC-480KW
 Technical parameters
 AC input Voltage range (V)  380±15%
Frequency range (Hz)  45~66
Input power factor  ≥0.99
Fluoro wave (THDI)  ≤5%
 DC output workpiece ratio  ≥96%
Output Voltage  (V)  200~750
Output power (KW)  120 160 180 240 320 480
Output Current (A)  240 320 360 480 320*2 480*2
Charging interface  2
Charging gun length   5m
 Equipment Other Information                 Voice (dB)  <65
 stabilized current precision  <±1%
stabilized voltage precision ≤±0.5%
output current error ≤±1%
output voltage error ≤±0.5%
current sharing unbalance degree ≤±5%
machine display 7 inch color touch screen
charging operation swipe or scan
metering and billing DC watt-hour meter
running indication Power supply, charging, fault
communication Ethernet(Standard Communication Protocol)
heat dissipation control air cooling
the charge power control  intelligent distribution
Reliability (MTBF)  50000
Size(W*D*H)mm  700*565*1630
installation method  floor type
 work environment     Altitude (m)  ≤2000
Operating temperature(℃)  -20~50
Storagetem perature(℃)  -20~70
 Average relative humidity  5%-95%
 Optional  4G wireless communication  Charging gun 8m/10m
Product Feature： AC Input: DC chargers first input AC power from the grid into a transformer, which adjusts the voltage to suit the needs of the charger's internal circuitry. DC Output: The AC power is rectified and converted to DC power, which is usually done by the charging module (rectifier module). To meet high power requirements, several modules can be connected in parallel and equalised via the CAN bus. Control unit: As the technical core of the charging pile, the control unit is responsible for controlling the charging module's switching on and off, output voltage and output current, etc., to ensure the safety and efficiency of the charging process. Metering unit: The metering unit records the power consumption during the charging process, which is essential for billing and energy management. Charging Interface: The DC charging post connects to the electric vehicle through a standard-compliant charging interface to provide DC power for charging, ensuring compatibility and safety. Human Machine Interface: Includes a touch screen and display.

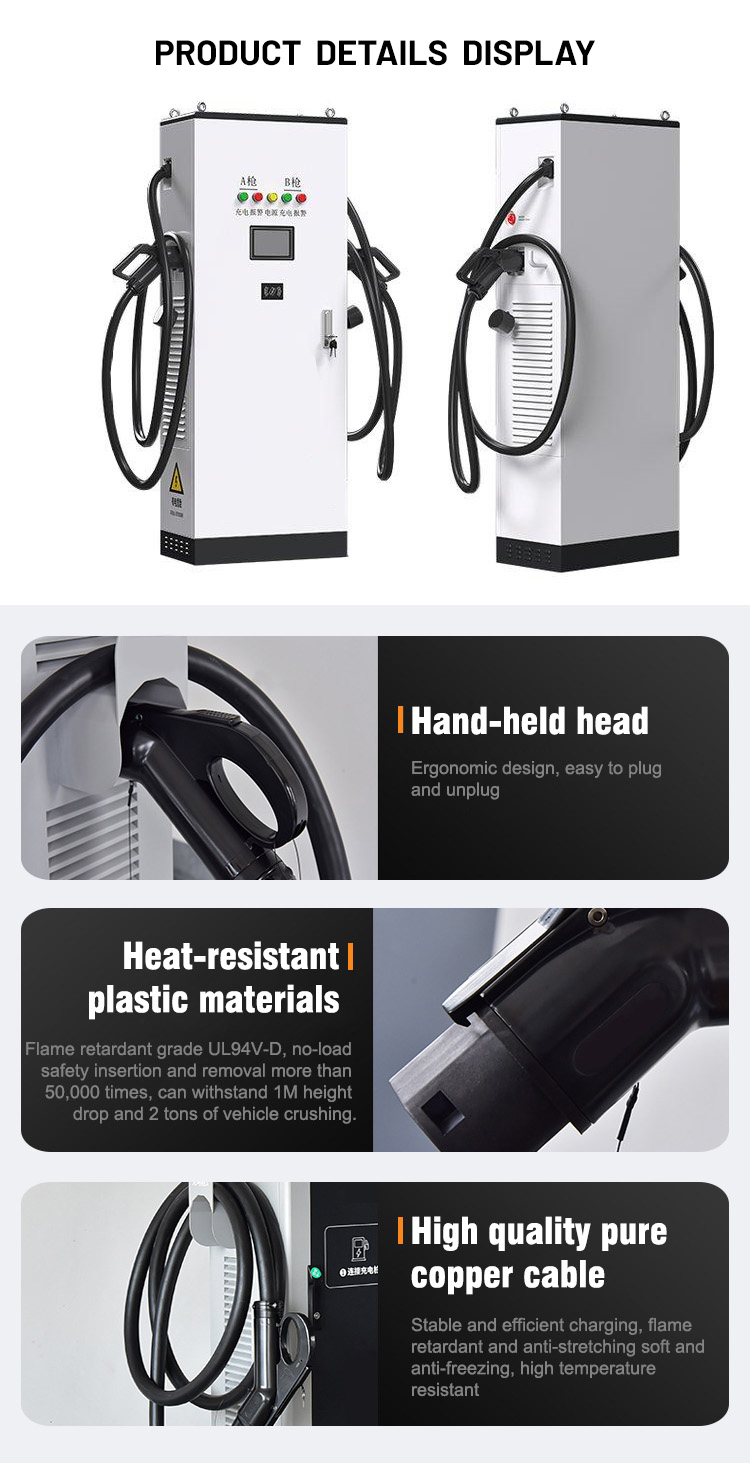

PRODUCT DETAILS DISPLAY

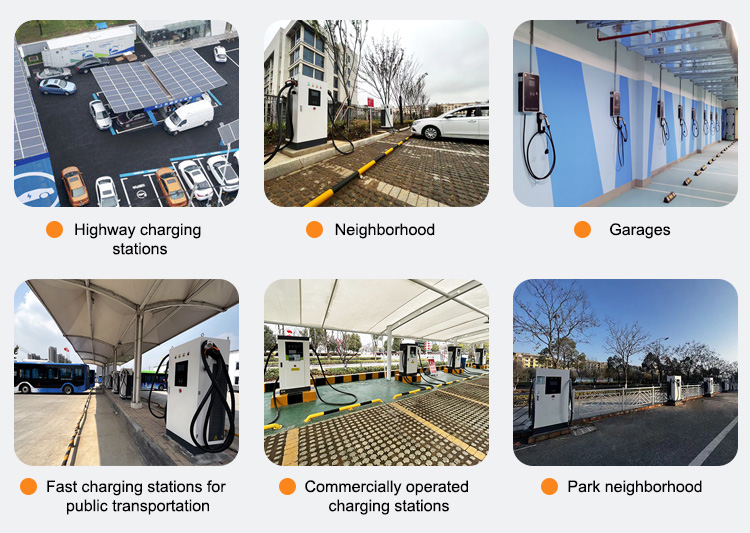

Application：

DC charging piles are widely used in the field of electric vehicle charging, and their application scenarios include, but are not limited to, the following aspects:

Public charging piles: set up in public places such as public car parks, petrol stations, commercial centres and other public places in cities to provide charging services for EV owners. Highway charging stations: charging stations are set up on highways to provide fast charging services for long-distance EVs and improve the range of EVs. Charging stations in logistics parks: charging stations are set up in logistics parks to provide charging services for logistics vehicles and facilitate the operation and management of logistics vehicles. Electric vehicle leasing places: set up in electric vehicle leasing places to provide charging services for leasing vehicles, which is convenient for users to charge when leasing vehicles. Internal charging pile of enterprises and institutions: Some large enterprises and institutions or office buildings can set up DC charging piles to provide charging services for the electric vehicles of employees or customers, and enhance the corporate image.

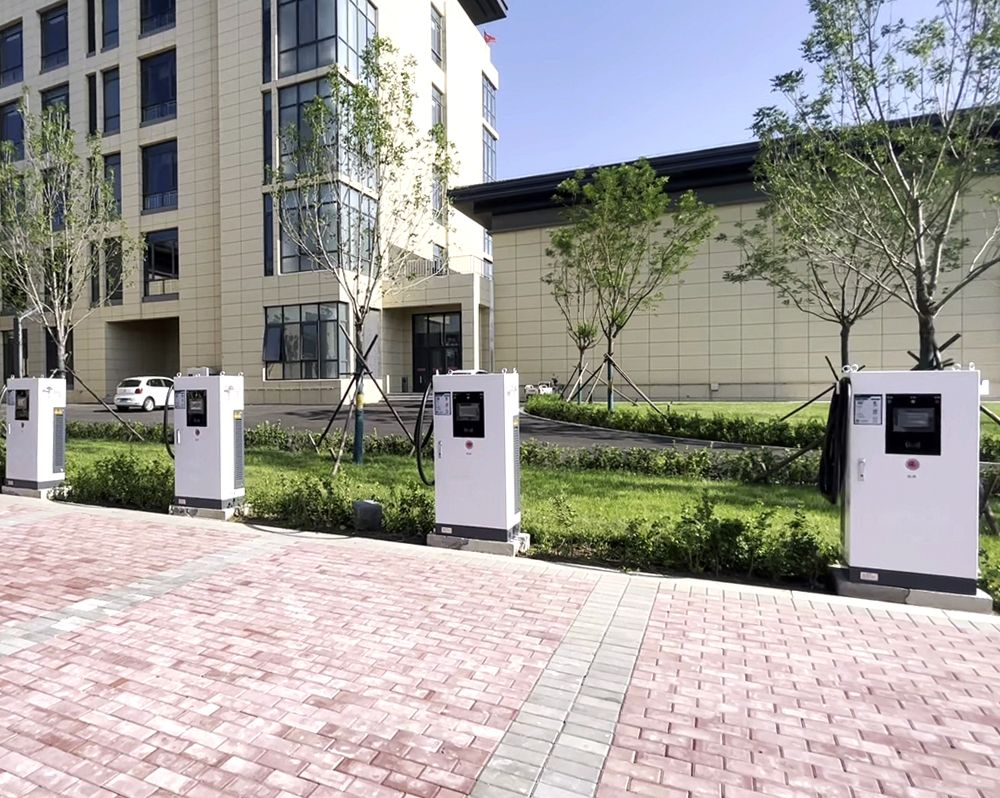

News-1

appliance

Company Profil

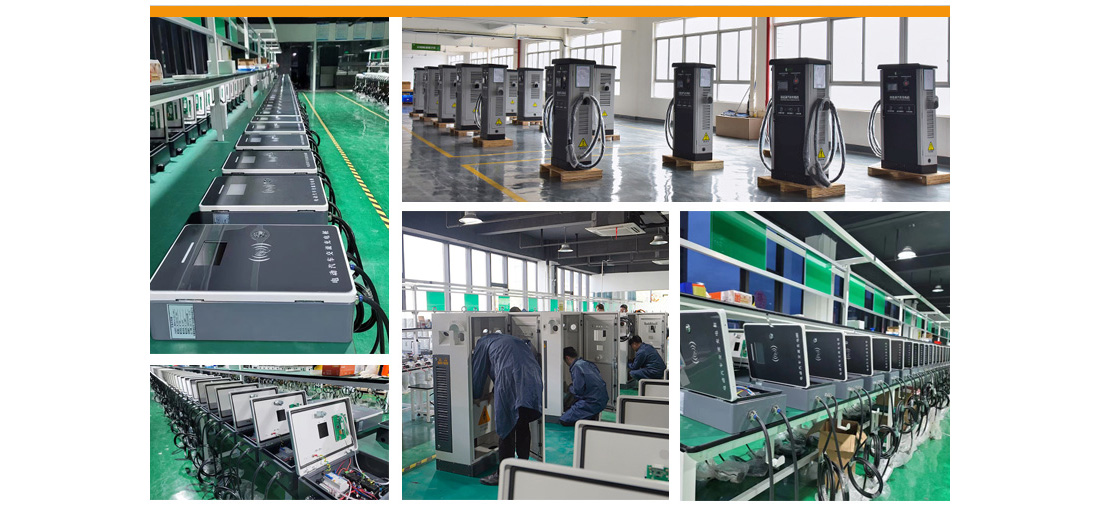

About Us

DC Charge Station

We support our consumers with ideal high-quality goods and substantial level support. Becoming the specialist manufacturer in this sector, we now have acquired abundant practical encounter in producing and managing for OEM China Mini personal portable 4G GPS Tracker Elderly GPS Watch magnetic charging dock station with avoid short circuit ic for in house desk charging DC01, The principle of our business is to present high-quality items, expert support, and truthful communication. Welcome all close friends to place trial buy for developing a long-term business relationship. OEM China China dock charging station and Charging station price, Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. We can provided good quality with competitive price for you.
