Product Description: The BHPC-022 portable EV charger is not only highly functional but also aesthetically pleasing. Its sleek and compact design allows for easy storage and transportation, fitting snugly into the trunk of any vehicle. The 5m TPU cable provides sufficient length for convenient charging in various scenarios, whether it's at a campsite, a roadside rest area, or in a home garage. The charger's compatibility with multiple international standards makes it a truly global product. It can be used with a wide range of electric vehicles, eliminating the need for users to worry about compatibility issues when traveling abroad. The LED charging status indicator and LCD display offer clear and intuitive information about the charging process, such as the current charging power, remaining time, and battery level. Furthermore, the integrated leakage protection device is a crucial safety feature. It constantly monitors the electrical current and shuts off the power immediately in case of any abnormal leakage, safeguarding both the user and the vehicle from potential electrical hazards. The durable housing and high protection ratings ensure that the BHPC-022 can withstand harsh outdoor conditions, from extreme temperatures to heavy rain and dust, providing reliable charging services wherever you go. Product Parameters

Model	BHPC-022
AC Power Output Rating	Max 44KW
AC Power Input Rating	AC 110V~240V
Current Output	16A/32A/48(Single-Phase,)
Power Wiring	3 Wires-L1, PE, N

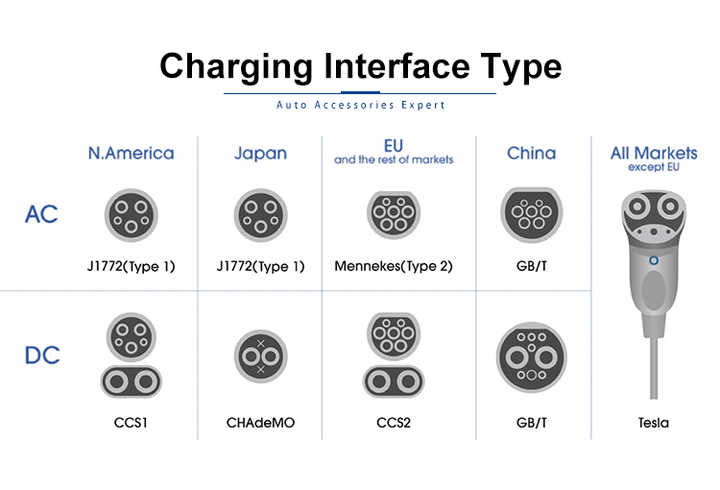

Connector Type	SAE J1772 / IEC 62196-2/GB/T
Charging Cable	TPU 5m
EMC Compliance	EN IEC 61851-21-2: 2021
Ground Fault Detection	20 mA CCID with auto retry
Ingress Protection	IP67,IK10
Electrical Protection	Over current protection
	Short circuit protection
	Under voltage protection
	Leakage protection
	Over temperature protection
	Lightning protection
RCD type	TypeA AC 30mA + DC 6mA
Operating Temperature	-25ºC ~+55ºC
Operating Humidity	0-95% non-condensing
Certifications	CE/TUV/RoHS
LCD Display	Yes
LED Indicator Light	Yes
Button On/OFF	Yes
External Package	Customizable/Eco-Friendly Cartons
Package Dimension	400*380*80mm
Gross Weight	5KG

FAQ What is your terms of payment? A:L/C, T/T, D/P, Western Union, Paypal, Money Gram Do you test all your chargers before shipping? A: All major components are tested before assembly and each charger is fully tested before shipped Can I order some samples? How long? A: Yes, and usually 7-10 days to production and 7-10 days to express. How long to fully charge a car? A: To know how long to charge a car, you need to know the OBC(on board charger) power of the car, the car battery capacity, the charger power. The hours to fully charge a car =battery kw.h/obc or charger power the lower one. For e.g, the battery is 40kw.h, obc is 7kw, charger is 22kw, the 40/7=5.7hours. If the obc is 22kw, then 40/22=1.8hours. Are you Trading Company or manufacturer? A: We are professional EV charger manufacturer.
